How Outdoor High-Voltage Disconnectors Are Revolutionizing Renewable Energy

2025-06-21 13:17:29

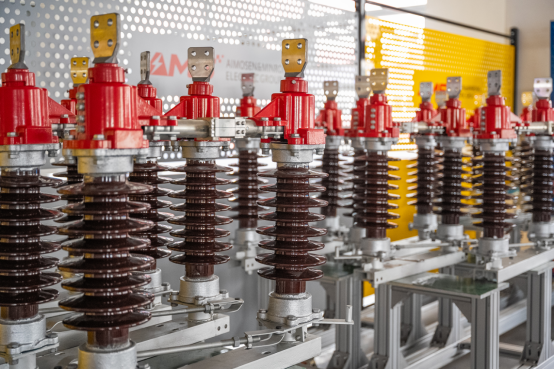

Outdoor High-voltage isolation switches used to be simple "switches" in the power grid, but now they lay the foundation for the safety and efficiency of the global renewable energy transition. With the surge of solar, wind, and energy storage, these critical components - responsible for isolating circuits during maintenance - are rapidly developing to meet extreme new demands.

Intelligence and Power: Intelligence and Ultra High Voltage

Faced with harsh environments, modern isolation switches are embedded with IoT sensors for real-time monitoring of vibration, temperature, and insulation. Some companies have now deployed AI driven systems to predict failures and reduce maintenance costs by 30%. At the same time, voltage thresholds are being broken: the breakthrough DC 2000V/2000A isolation switch from a well-known electrical brand - validated by China CQC - reduces power losses in high-voltage solar/energy storage systems, while 3.3kV digital isolator replaces the easily faulty optocouplers in electric vehicle battery management.

Green Grid: Redefining Materials

In response to the EU's SF6 gas ban (effective in 2025), Shanghai Minrong and other innovators have used C5-PFK mixture and dry air insulation for environmentally friendly switches. Structural upgrades can also minimize carbon footprint to the greatest extent possible:

-The aluminum alloy frame and biological coating enhance recyclability.

-The silicon carbide (SiC) MOSFET in digital isolators reduces leakage current to ≤ 5 μ A, improving efficiency.

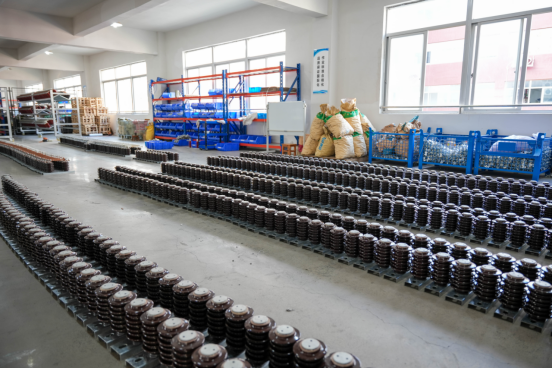

-Composite silicon insulators can withstand temperatures ranging from -40 ° C to+60 ° C and desert sandstorms (creepage ≥ 54mm/kV).

Future oriented applications

From China's ± 550kV offshore wind farms to 1500V/2000V energy storage racks, isolation switches make the next generation of infrastructure possible. Innovations such as horizontal rotation damping mechanism can prevent misalignment under gust conditions, while integrated DC isolation switches simplify the design of solar power plants.

The Road Ahead: Digital Twins & HVDC

Emerging HVDC disConnectors will bridge continents with renewable power, while digital twins simulate wear to preempt outages. As carbon-fiber insulators cut weight by 30%, one truth emerges: The humble disconnector is now a linchpin of planetary decarbonization.
